220' Anchor Mimu Gbigbe Tug Ipese Ohun elo AHTS ABS DWT 2270 BP 103
ìbéèrè id 1782
Ẹka Ọkọ oju-omi kekere
Kọ Ọdun 1982...7340
Beere ọjọ ti a fikun 2021-11-17
Fi kun nipa Horizon Ship Brokers, Inc

Iwọn iwuwo

DWT 2270...

Awọn iwọn ọkọ oju omi

Apapọ gigun (LOA), m 220...
Awọn ọkọ oju omi ti o jọra Ṣe afihan awọn ọkọ oju omi ti o jọra
imeeli Firanṣẹ E-mail



Awọn fọto

Original message

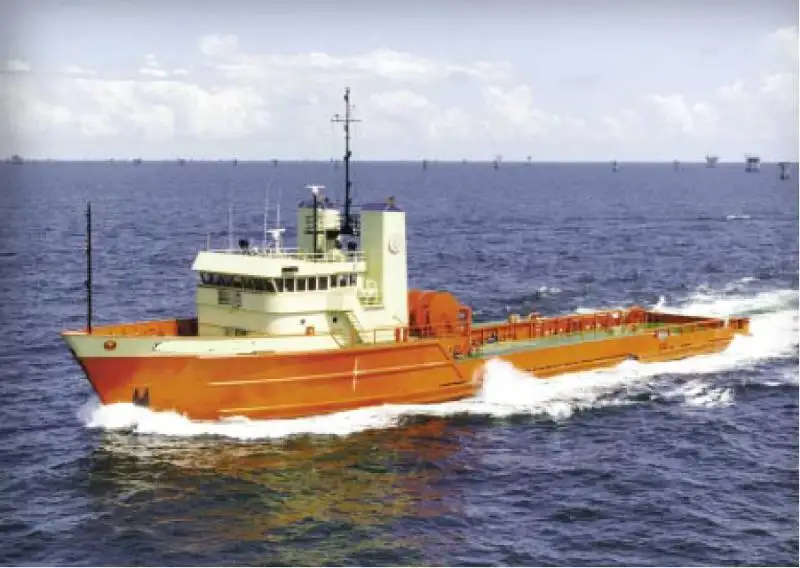

220' Anchor Handling Towing Tug Supply Vessel AHTS ABS DWT 2270 BP 103
Description
220' Anchor Handling Towing Tug Supply Vessel AHTS ABS DWT 2270 BP 103 For Sale
CONTACT US FOR BEST PRICE
220 x 42 x 14
Built 1982
7340 BHP
Bollard Pull 103 MT
DWT 2270
DIMENSIONS 220’ X 42’ X 16’
Draft (Maximum): 13.82’
Draft (Lightship): 8.63’
Displacement (Maximum): 2,270.48 LT
Displacement (Lightship): 1,235.19 LT
Clear Deck: 108’ x 32’
Clear Deck Area: 3,456 sq. ft.
Deck Cargo Capacity: 865 LT
CAPACITIES
Fuel Oil: 91,864 gals.
Fresh Water: 14,631 gals.
Ballast: 215,436 gals.
Dry Bulk: 6,000 cu. ft. @ 80 psi
Liquid Mud: 2,222 barrels
Chain Lockers: Four (4) x 3,000 ft. of 3”
METRIC EQUIVALENTS
67.06 m X 12.8 m X 4.88 m
4.21 m
2.63 m
2,306.43 MT
1,255.01 MT
32.92 m x 9.75 m
320.97 m2
878.88 MT
347.74 m3
55.38 m3
815.51 m3
169.9 m3 @ 5.5 bars
353.27 m3
Four (4) x 914.4 m of 76.2 mm
MACHINERY
Main Engines: Two (2) EMD 16-645E7BA, 6,140 BHP
Bow Thrusters: One (1) 535 HP Tunnel
One (1) 1,200 HP Retractable Azimuthing
Propulsion: Fixed (Nozzles)
Winch: Double Drum Waterfall, 290 MT per drum
Storage Reels: Four (4) 4,125’ of 3” inch wire each
SPECIAL FEATURES
Shark Jaw: One (1) 300 MT
Tow Pin: One (1) 150 MT
Stern Roller: One (1) 5’ x 8’ (1.52 m x 2.44 m)
Tuggers: Two (2) x 10 Tons (9.07 MT)
ACCOMMODATIONS: 23
CLASSIFICATION
ABS Loadline
USCG Subchapter I
LIFESAVING EQUIPMENT
Two (2) x 25-Man Life Rafts
One (1) x Rescue Litter
One (1) x Narwhal Rescue Craft
Other gear as required by USCG and SOLAS
ELECTRONICS
Sperry Magnetic Compass
Sperry Gyro Compass
Two (2) Furuno Radars
JRC GMDSS Remote Radios
JRC GMDSS Computer/Radio Console
Sea SSB (Single Sideband Radio)
iMac Computer with Epson Printer
Raytheon GPS
JRC Navtex Weather Receiver
DataMarine Fathometer
Sea VHF Radio
Sailor VHF Radio
Two (2) Standard Handheld VHF Radios
Specifications
Vessel type:Supply
Model: AHTS
Constructed: 1982
Length over all: 220'
220' Anchor Handling Towing Tug Supply Vessel AHTS ABS DWT 2270 BP 103 For Sale
